Fiber-Optic Transmission > Contact Closure to Fiber Optic Converters

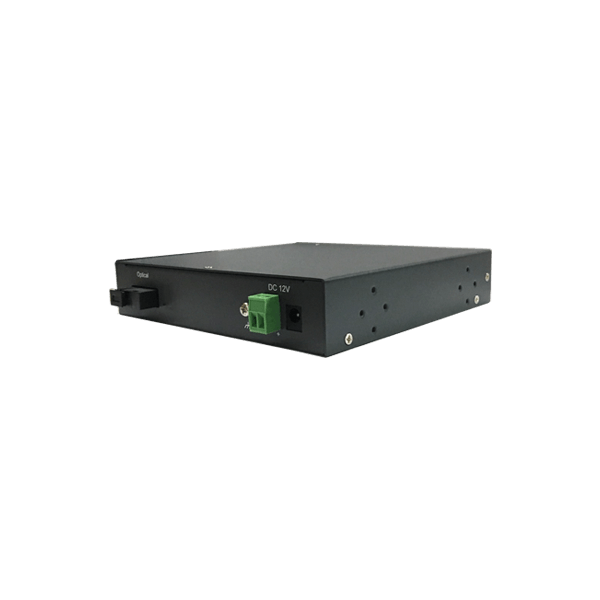

OIC-8I8O

The OIC-8I8O is designed to enable customers to get the highest performance at the lowest budget, and to fully cooperate with all types of dry contact trigger devices on the building automation and environmental control market. Including the application of alarm triggering, PIR signal transmission, fire alarm systems, traffic signal control or gate control. This series support both dry contact and non-dry contact signals. This model provides transmission of 8 independent input signals over fiber optic cable and each unit features NC/NO/GND contact for system monitoring.


Retains high performance in harsh environments with extreme temperatures ranging from -40 ° C to 75 ° C.

OIC boosts voltage surge protection to 2KV levels to improve system reliability and safety.

It has dual power input DC 12V/1A, including DC power input and Phoenix terminal for power backup.

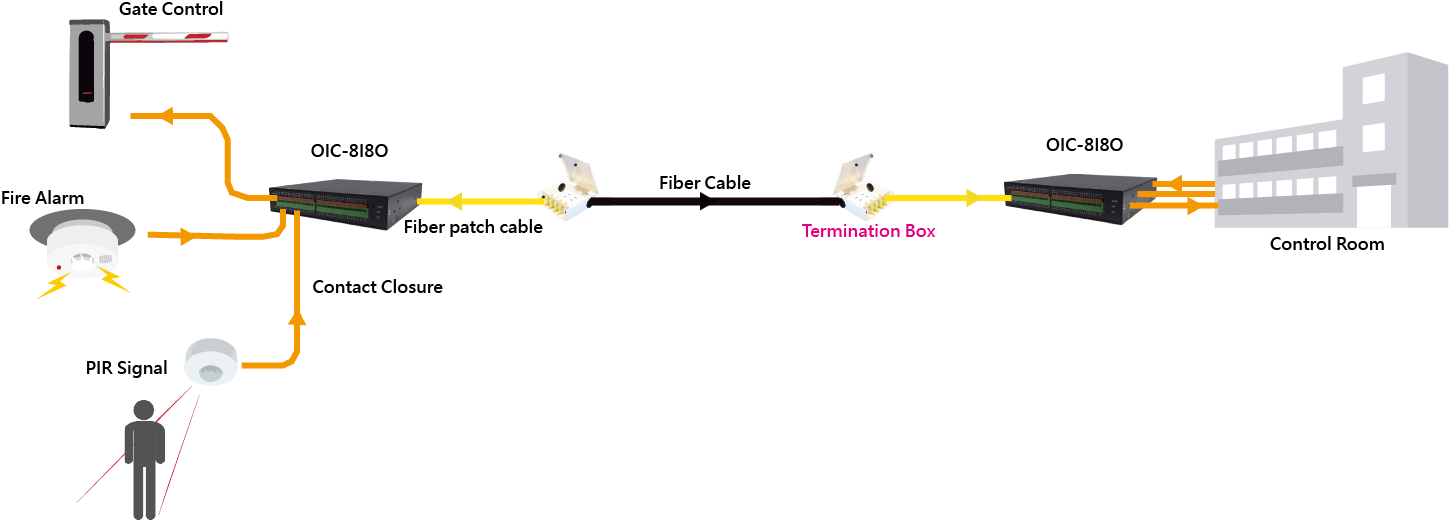

● Alarm Event Triggering ● Building Automation ● Environmental Control System
● Fire & Alarm System ● Gate Control ● Traffic Signal Control Equipment



● OIC-4I/O
Unidirectional 4 CH Contact Closure to Fiber Converters

● OIC-8I/O
Unidirectional 8 CH Contact Closure to Fiber Converters

● OIC-16I/O
Unidirectional 16 CH Contact Closure to Fiber Converters

● OIC-4I4O
Bidirectional 4 CH Contact Closure to Fiber Converters

● OIC-8I8O
Bidirectional 8 CH Contact Closure to Fiber Converters
