POE-1410P is a new generation of Gigabit PoE+ Fiber Optic Switch introduced by Hoatech in the 2020. In addition to the first generation of original functions, this version has improved the lightning strike protection level, which has 4 x 10 /100/1000BaseT(X) 802.3af/at (PoE) Ethernet port and 1 combo Gigabit Ethernet port and a SFP fiber port. Each PoE port of the POE-1410P can provide up to 30 watts of power, and can be powered to PD devices (such as IP cameras, access control systems, IP phones, wireless APs, etc.), which is beneficial for users to install. The best of all, it comes with isolated regulator is implemented to protect internal circuitry from surge voltage up to 1500V.
(2).png)
(2).png)
(3).png)
(1).png)
Redundant power input (48-56VDC) & Reverse power protection
12KV surge protection on each PoE port
-40°C~75°C operating temperature
IEEE 802.3af/at (15.4/30W)
(4).png)
.png)
.png)

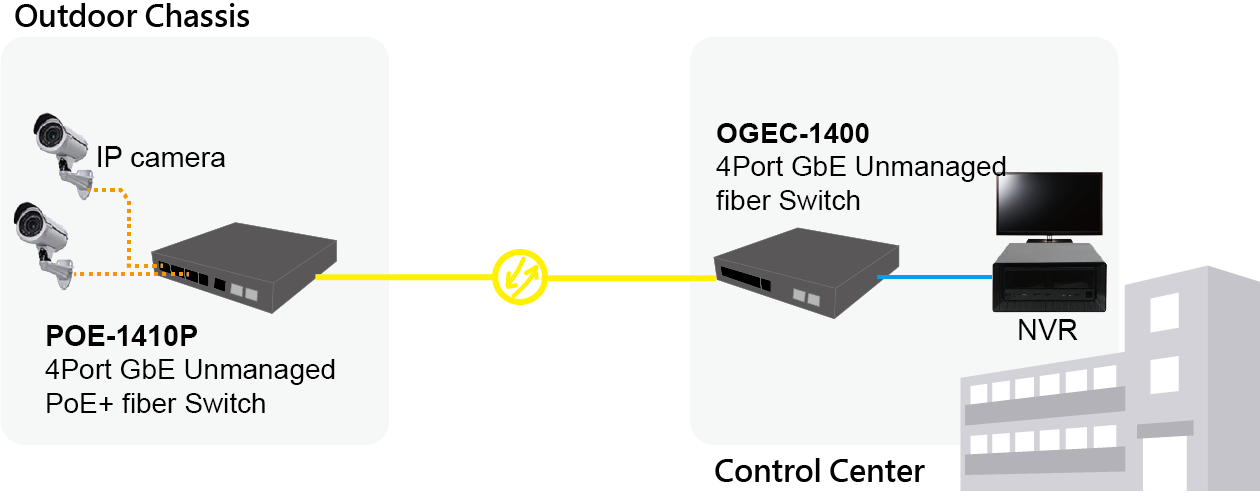

● PoE+ IP CCTV ● Access Control Systems ● IP Phone Communication ● Wireless AP Systems
● Intelligent Transportation System ● Building Automation
.png)
● POE-1410P
48VDC, 4 ports Industrial Gigabit PoE+ Fiber Optic Switch
4x10/100/1000BaseT(X) PSE (802.3af/at PoE+), 1x100/1000M TX/SFP combo, 1x100/1000M SFP,
-40 to 75°C operating temperature
● POE-0820P
48VDC, 8 ports Industrial Gigabit PoE+ Fiber Optic Switch
8x10/100/1000BaseT(X) PSE (802.3af/at PoE+), 2x100/1000M TX/SFP combo,
-40 to 75°C operating temperature
