This PoE Series provide four or eight 10/100/1000T ports featuring 30 watts IEEE802.3at PoE+, a total 240 watts for eight ports model, 120 watts PoE budget for four ports, and extra combo and fiber SFP ports to fulfill the demand of enough PoE power for IP surveillance and Wi-Fi system in a small size but high-performance network.
This series also features PoE detection, to verify whether the connected device is IEEE 802.3at compliant; if it is not a PoE device, only data will be sent through the LAN cable. Furthermore, this series can be daisy-chained to another switch through fiber or copper without difficulty.
This series also features PoE detection, to verify whether the connected device is IEEE 802.3at compliant; if it is not a PoE device, only data will be sent through the LAN cable. Furthermore, this series can be daisy-chained to another switch through fiber or copper without difficulty.
● 30W PoE+ per channel
● Each PoE port can be manually set for On-Off control
● 12KV surge protection on each PoE port
● 48~56VDC redundant power inputs
● Fan-Less design is an ideal solution for SOHO environments
● No special networking cable required, reducing installation time and labor costs
● 100% designed and made in Taiwan
Easy Cable Connection

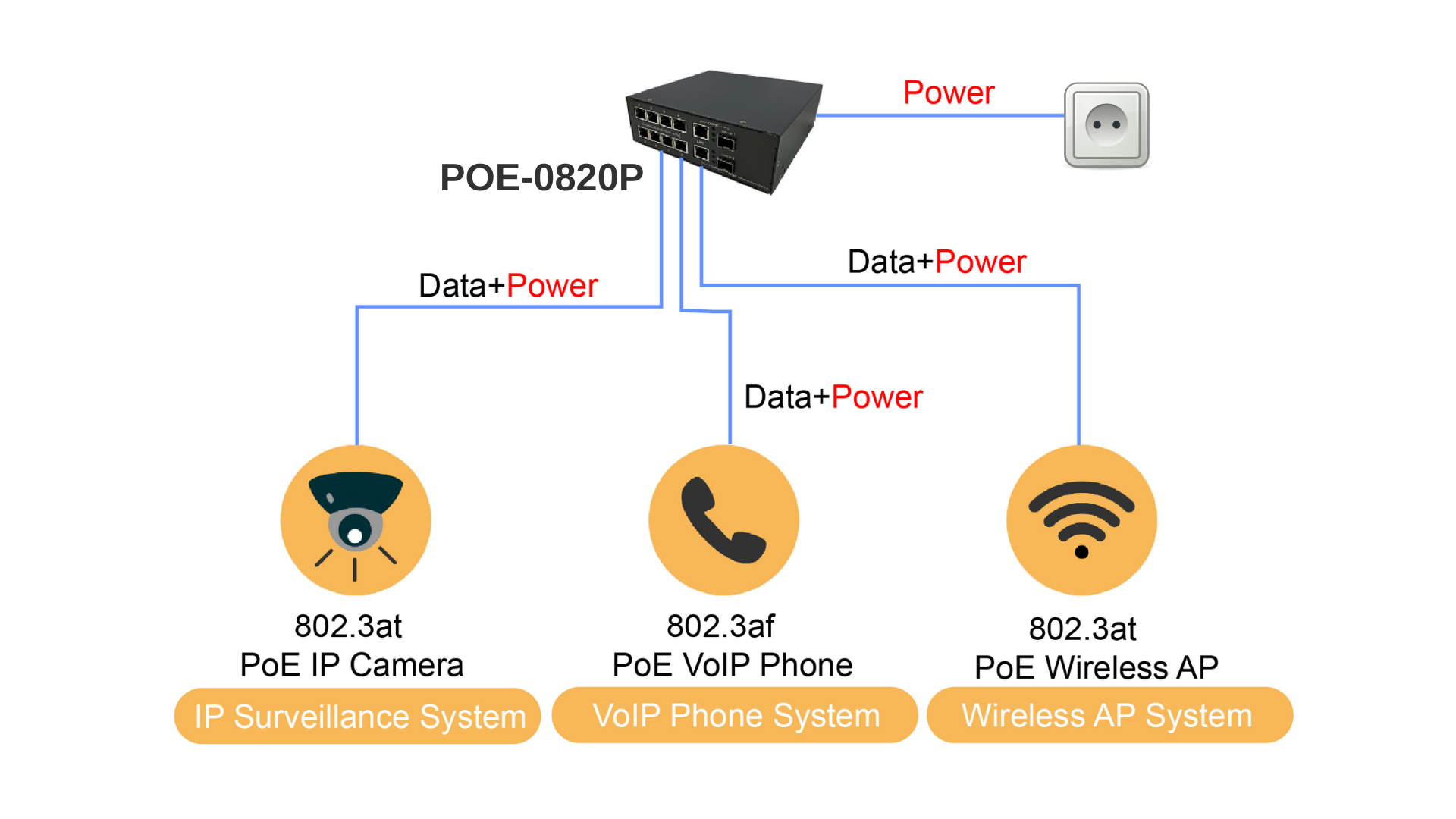

Providing 802.3at PoE+ in-line power interface, Hoatech PoE series can easily build a power source that powers the enterprises’ IP phone system, IP camera systems and wireless AP systems.

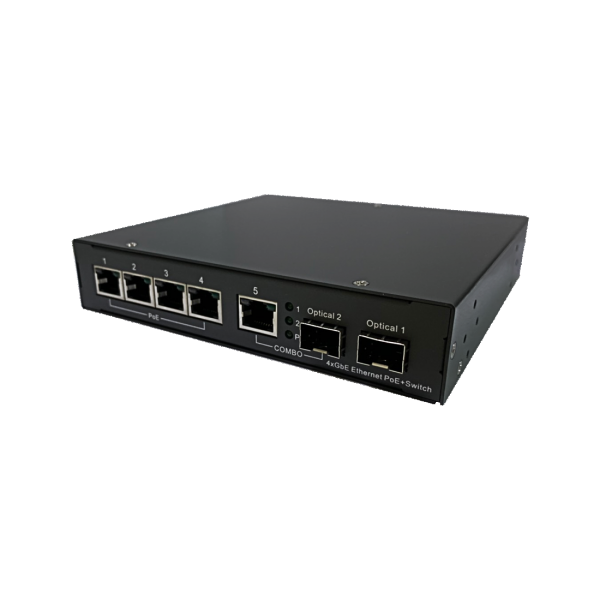

POE-1410P
4 ports Industrial Gigabit PoE+Switch4x10/100/1000BaseT(X) PSE (802.3af/at PoE+), 1x100/1000M TX/SFP combo, 1x100/1000M SFP, -40 to 75°C operating temperature

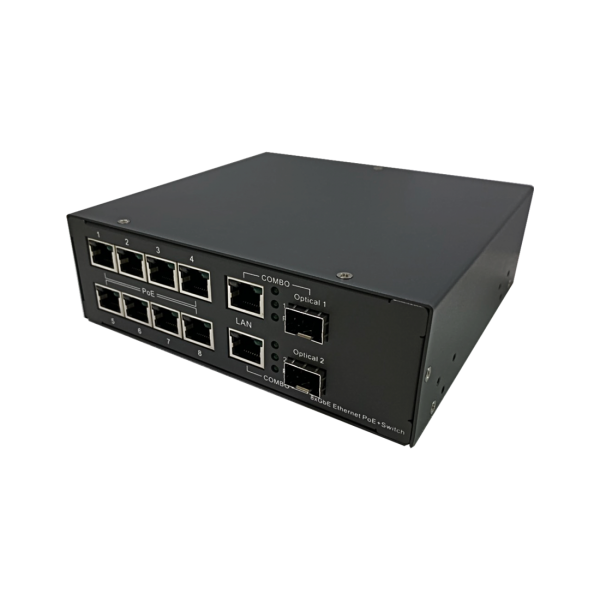

POE-0820P
8 ports Industrial Gigabit PoE+Switch8x10/100/1000BaseT(X) PSE (802.3af/at PoE+), 2x100/1000M TX/SFP combo,
-40 to 75°C operating temperature

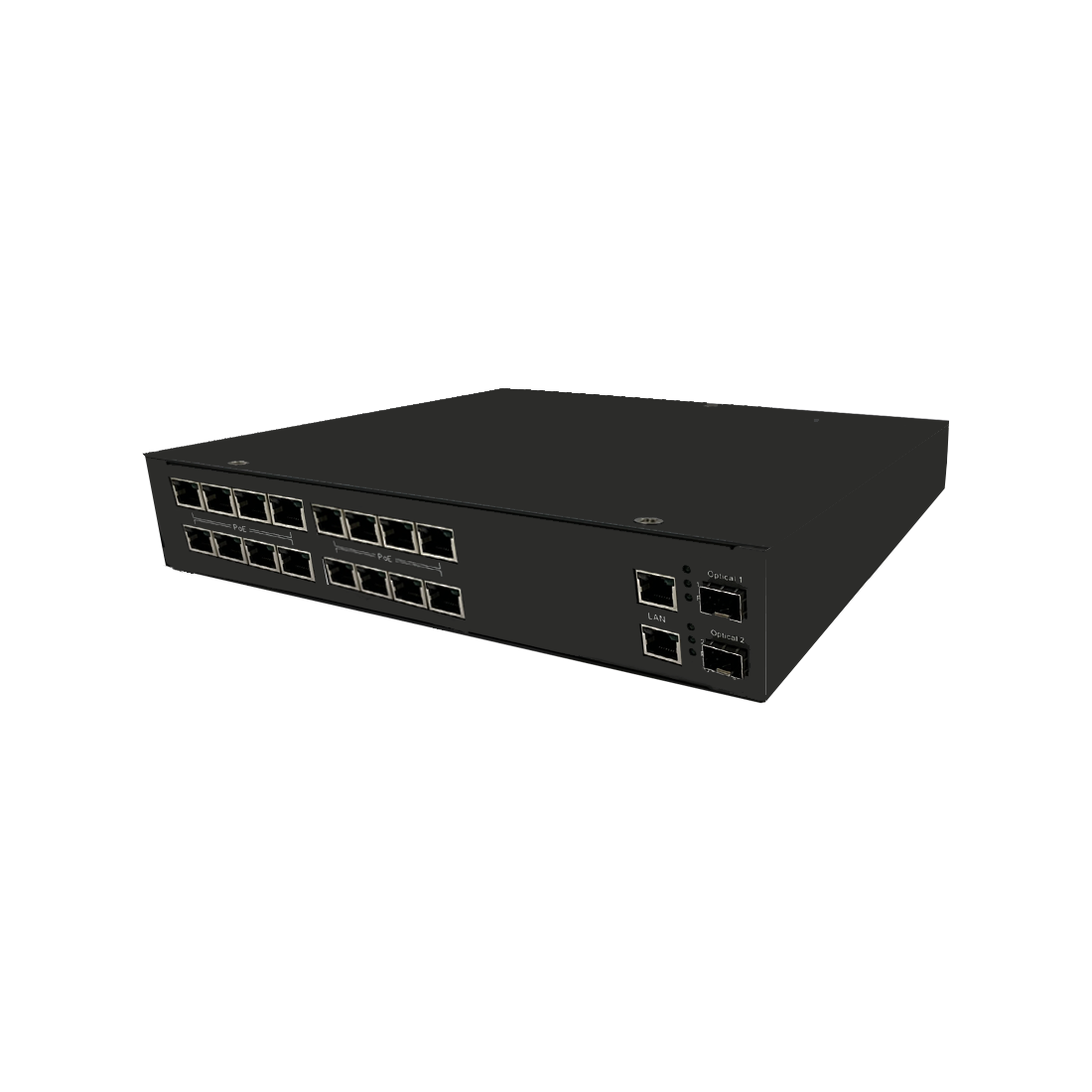

POE-2162P
20 ports PoE to Fiber Optic Ethernet Switch, 16x10/100BaseT(X) PSE (802.3af PoE), 2x1000M UTP, 2x 1000M SFP Port*This model is expected to make a debut in Q2 of 2021*
Your Reliable Solutions Partner of Today and Tomorrow
Hoatech is an optical converter and digital headend solutions provider, covering a variety of telecommunications,domestic digital TV and commercial distribution market segments. The core value of Hoatech is to deliver solutions through in-house developed technologies applied to its whole product line.Like Lego, Hoatech R&D capability can build up different kind of possibility. Counting on long-standing business relationships. Hoatech deserves good reputation on quality and service in the long term. We believe that the success of a brand results from the products with high quality and the trust of partners.
